TRUCK CRANE QY25K5-IHOOKBOOMOPERATOR’S CABTURNTABLESLEWING BEARINGSLEWING MOVEMENTLIFTING MOVEMENTTRUCK CRANE ELECTRIC SYSTEMTRUCK CRANE ELECTRIC SYSTEMPIPE ASSEMBLYPIPE ASSEMBLYJIBTELESCOPIC CYLINDERBOOM HEAD SHEAVEHOODCOUNTERWEIGHTDERRICKING CYLINDERDIAGRAM FOR OPERATING TURNTABLEAUXILIARY HOOKSTEEL CAB AND RINGING

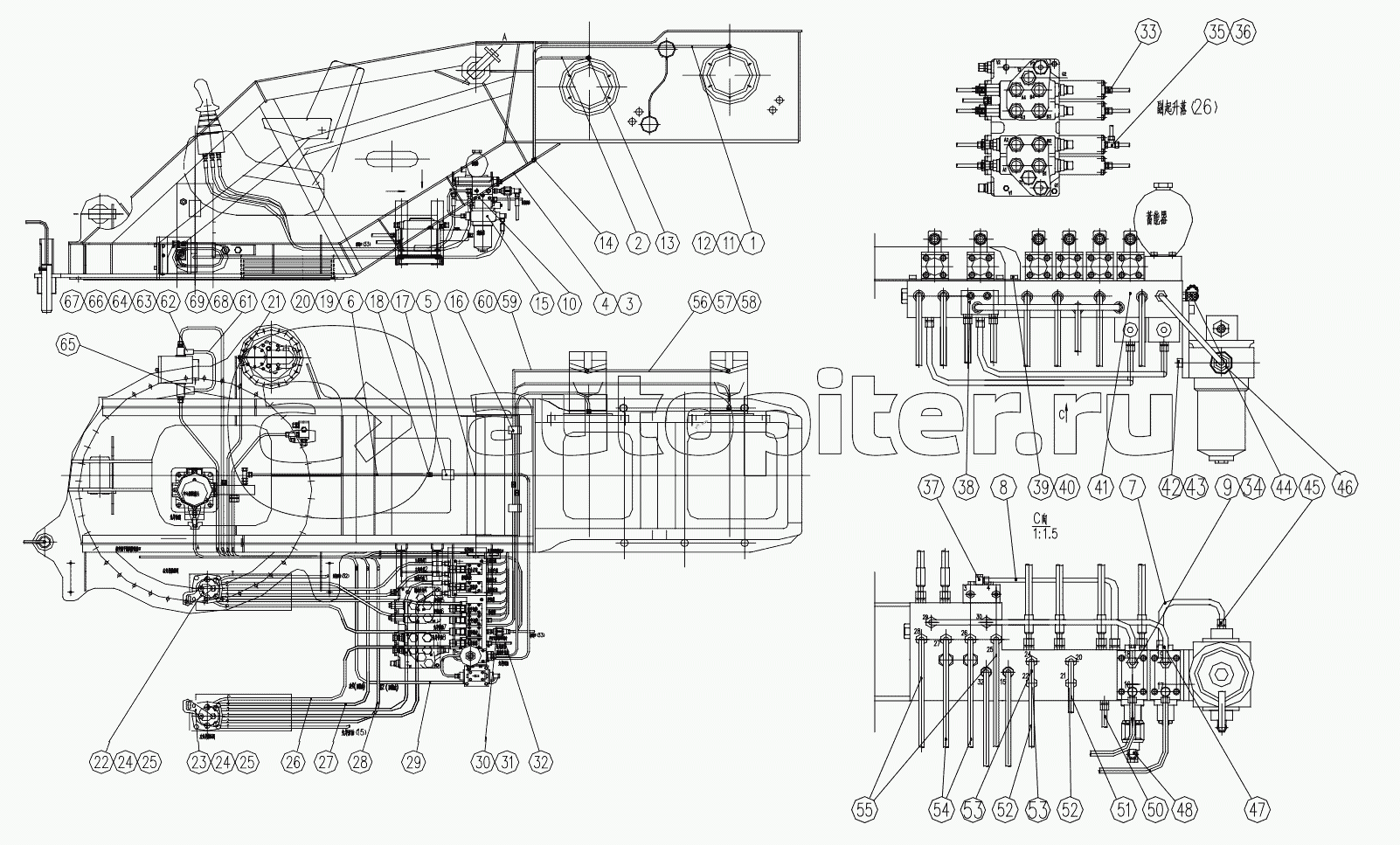

111201567 Pipe assembly
111201610 Inlet and outlet piping

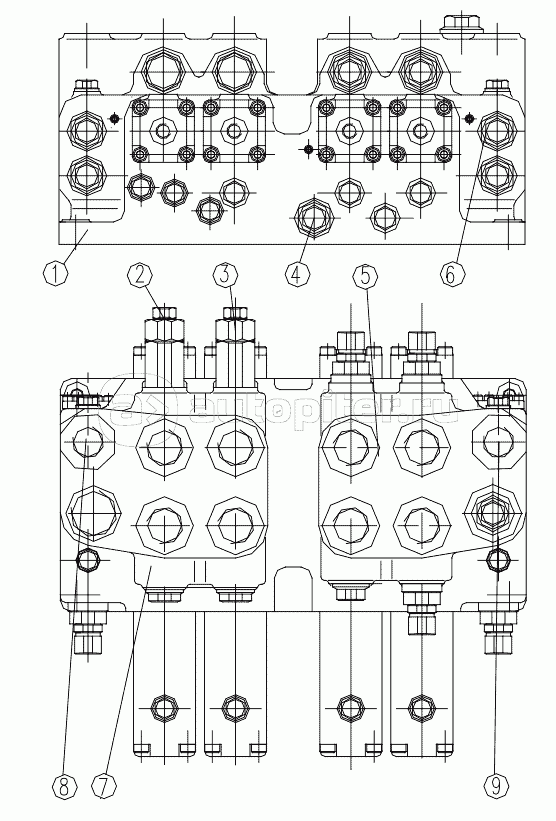

803000400 Multi-channel valve
111201534 Guide control's Piping Plan
01813123 The turn round's assembly pipe route

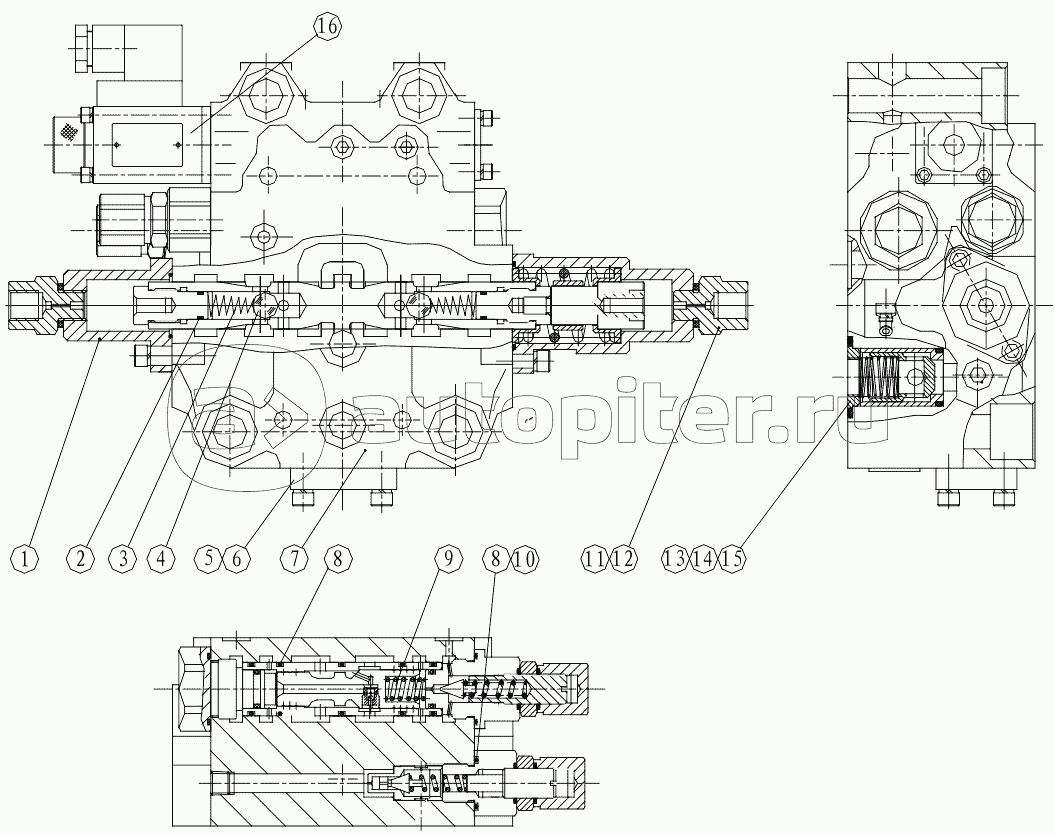

01813127 Valve for Buffering ass'y

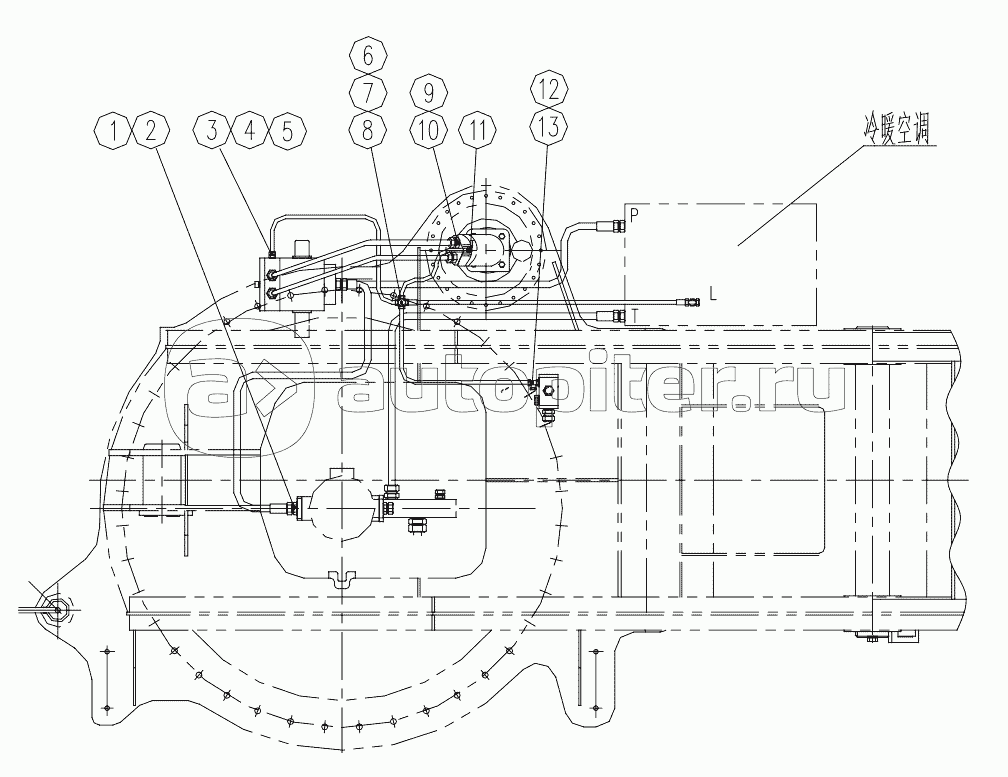

803000088 Slewing Control Valve
111201528 The Rise, Change the range's the pipe route picture
