ZCC1100Hzcc1100h
Поиск деталей
COMPLETE MACHINEBOOM SYSTEMPOWER SYSTEMSLEWING TABLE SYSTEMHOIST GEARDERRICKING MECHANISMSLEWING GEARCONTROL SYSTEMUNDERCARRIAGE SYSTEMELECTRICAL SYSTEMHYDRAULIC SYSTEM

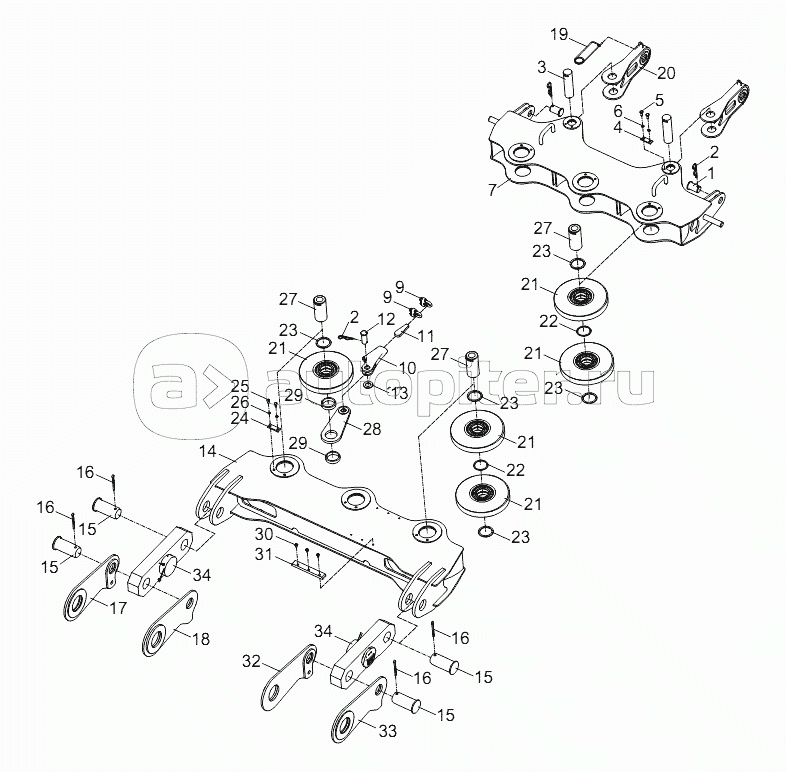

DERRICKING PULLEY BLOCK D00663112100000000Y

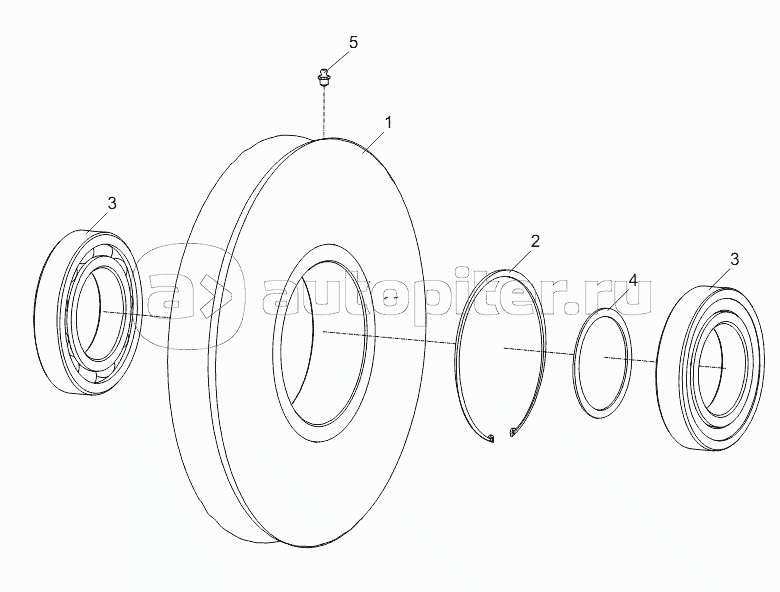

PULLEY ASSY. D00663000100640002Y

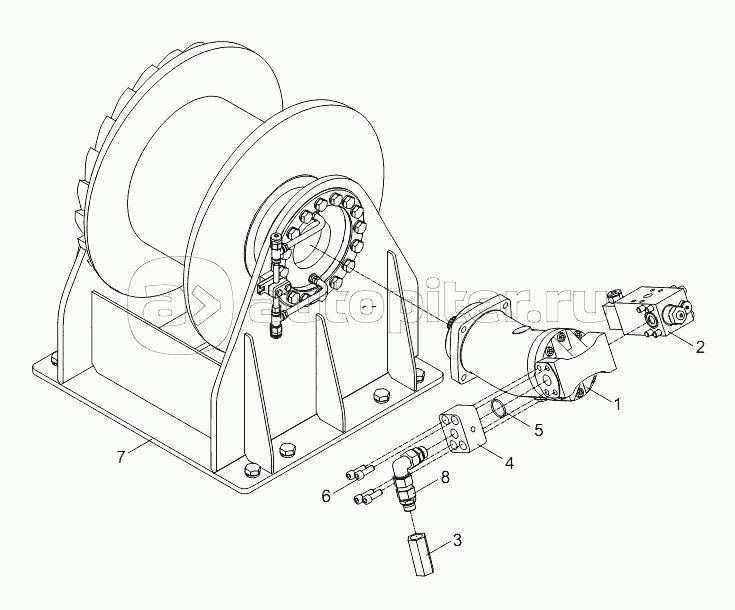

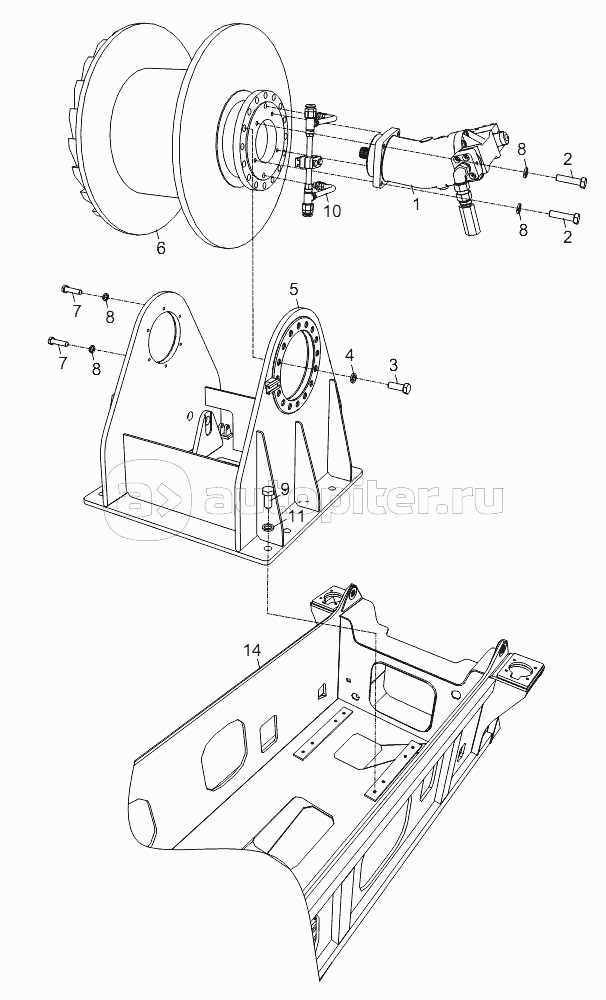

DERRICKING MECHANISM D00663112000000000Y
DERRICKING MOTOR+BALANCE VALVE D00663112000200000Y
PLUNGER MOTOR D1010100003_100025Y

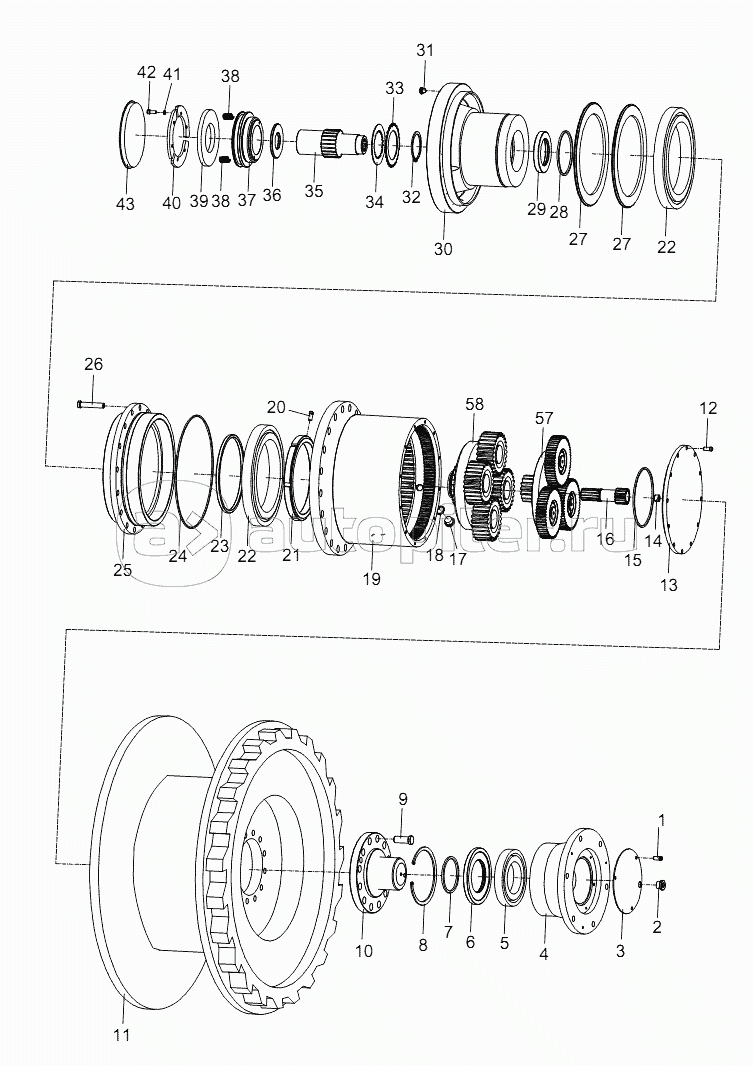

DERRICKING REDUCER D1030201321_100014Y

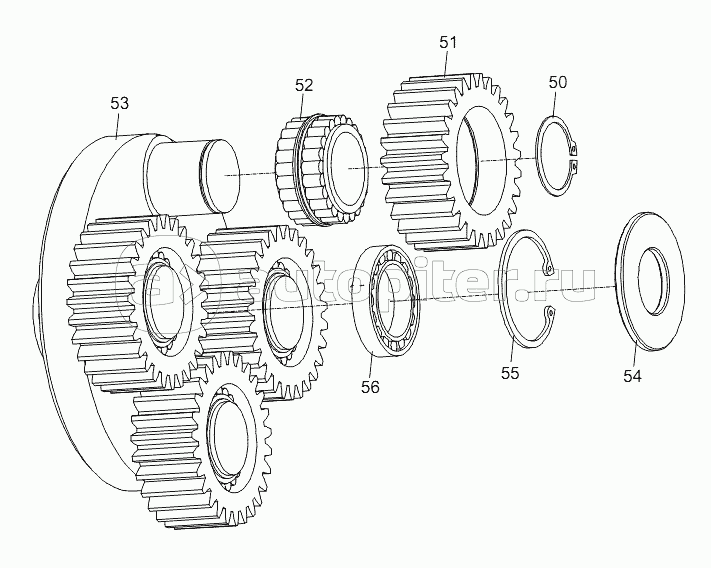

DERRICKING REDUCER (PRIMARY PLANET CARRIER ASSY.) D1030201321_100014Y
DERRICKING REDUCER (SECONDARY PLANET CARRIER ASSY.) D1030201321_100014Y
RATCHET WHEEL MECHANISM D00663003700000001Y

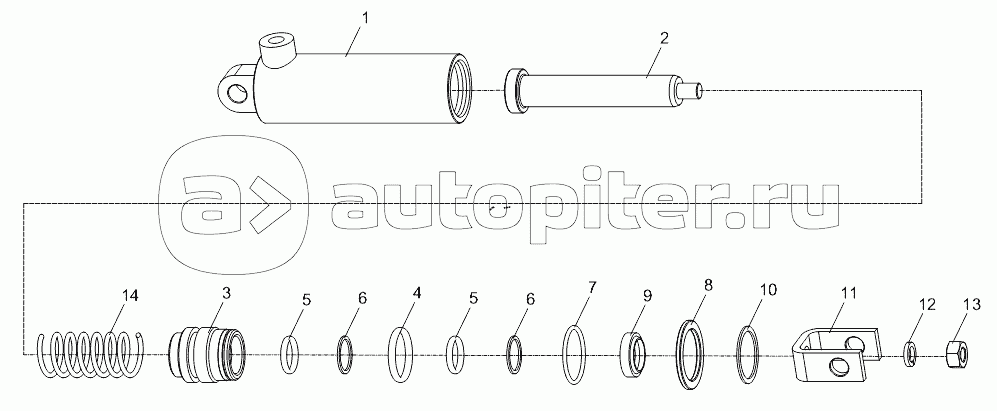

RATCHET WHEEL CYLINDER D00663307500000001_6400Y
